Telescopic Tower Ladder
Design No.AL-1008/8803

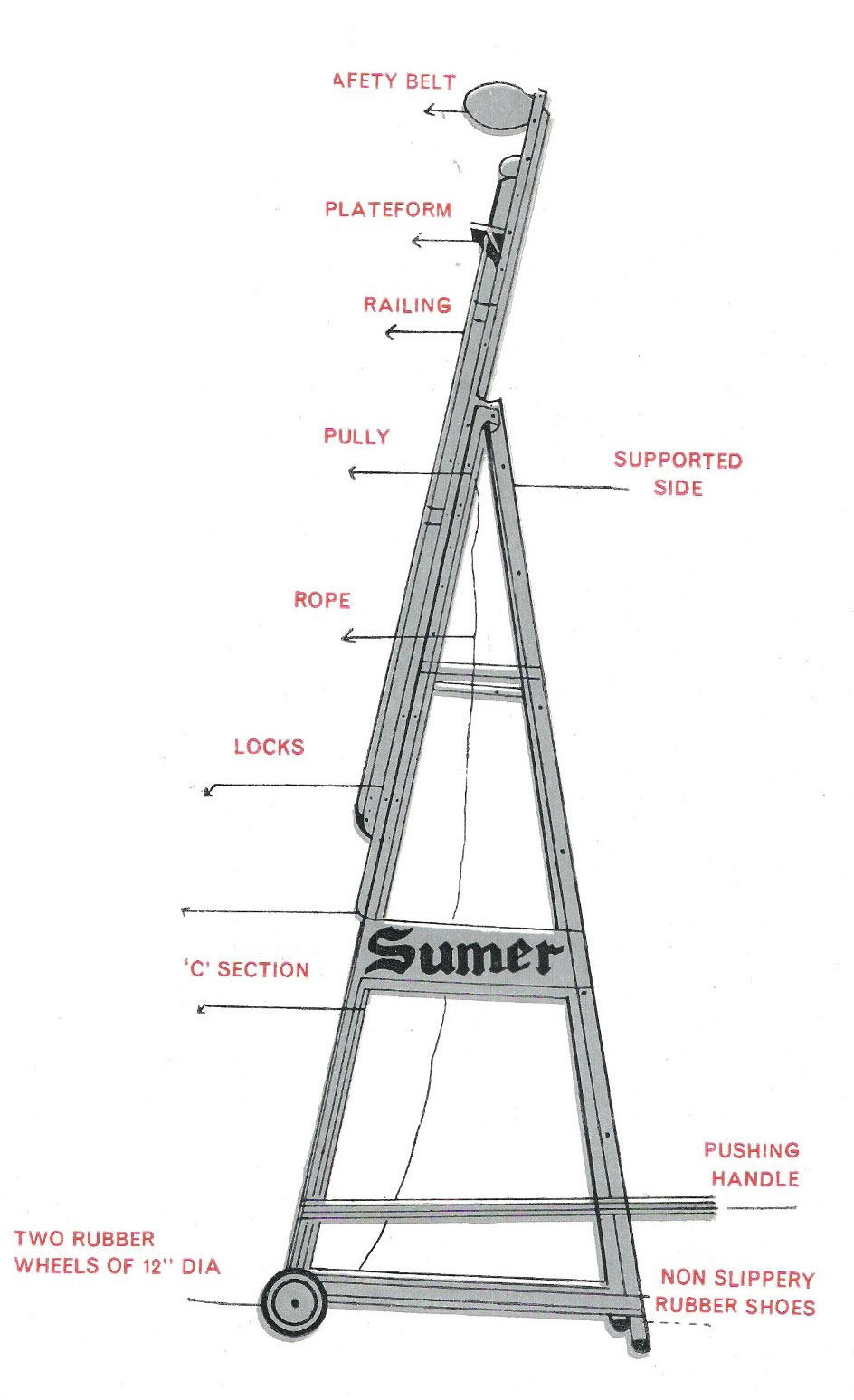

ALUMINIUM ECONOMICAL TELESCOPIC LADDER
Description : Aluminium economical telescopic wheeled tower ladder made out of high tensile aluminium Alloy provided with platform, safety ring, railing, pushing handle, lock, pulley, rope fitted with locking device. Two wheels of size 12” x2” at front side for easy movement and rubber pads at bottom and upper ends.
Side : Aluminum ‘C’ shape section 66.6×31.7x3mm
Step : Aluminum 25mm dia corrugated tubing.
OPTIONAL
Side : Aluminum ‘C’ shape section 66.6×31.7x4mm
Step : Aluminum 26mm square corrugated tubing.
OPTIONAL
Side : Aluminum Channel shape section 75x35x3.5mm
Step : Aluminum 26mm square corrugated.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
HEIGHT AVAILABLE:
| Closed Height FT. (Mtrs.) |
Extended Height FT. (Mtrs.) |
Closed Height FT. (Mtrs.) |
Extended Height FT. (Mtrs.) |
| 8′(2.44) | 12/14′ (3.66/4.27) |
16′(4.88) | 28/30′ (8.54/9.14) |
| 10’(3.04) | 16/18′ (4.88/5.49) |
18′(5.49) | 32′(9.76) |
| 12′(3.66) | 20/22′ (6.09/6.70) |
20′(6.09) | 35/36′ (10.66/10.98) |
| 14′(4.27) | 24/25′ (7.32/7.62) |
24′(7.32) | 40′(12.19) |
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No.AL-333/8801

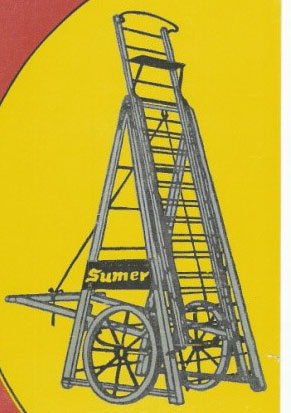

ALUMINIUM ROADSTER TOWER LADDER
Description : Aluminium roadster tower ladder sides made of high tensile aluminium Alloy mounted on 02 No. M.S. Heavy duty wheels of size-3-4 ft. Fitted with handle lock, pulley, rope etc. Rubber shoe provided.
Side : Aluminum ‘C’ shape section 66.6×31.7x3mm
Step : Aluminum 25mm dia corrugated tubing.
OPTIONAL
Side : Aluminum Channel shape section 75x35x3.5mm
Step : Aluminum 26mm square corrugated.
OPTIONAL
Side : Aluminum Channel shape section 75x35x3.5mm
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
HEIGHT AVAILABLE:
| Closed Height FT. (Mtrs.) |
Extended Height FT. (Mtrs.) |
Closed Height FT. (Mtrs.) |
Extended Height FT. (Mtrs.) |
| 10’(3.04) | 12′(3.66) | 14′(4.27) | |
| 17’(5.18) | 20’(6.09) | 24’(7.32) | |
| 16’(4.88) | 18’(5.49) | 20’(6.09) | |
| 28’(8.54) | 32’(9.76) | 36’(10.98) |
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No.AL-555/8813

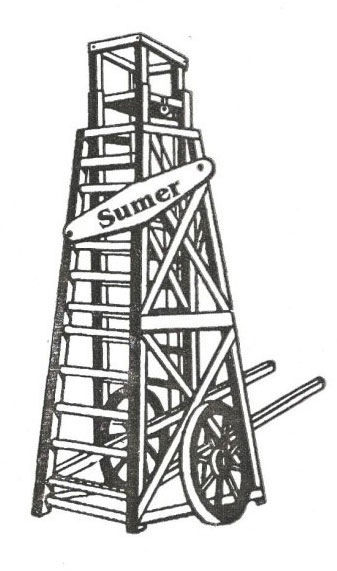

ALUMINIUM TELESCOPIC TOWER LADDER
Description : Aluminium telescopic tower ladder made of AL. ‘C’ section and steps of AL. Corrugated tubing with platform and tool tray on top with two big wheels of dia 3 ft. to 4 ft. Along with wire rope and hand operated winch machine.
Side : Aluminum ‘C’ shape section 66.6×31.7x3mm
Step : Aluminum 25mm dia corrugated tubing.
OPTIONAL
Side : Aluminum ‘C’ shape section 66.6×31.7x4mm
Step : Aluminum 26mm square corrugated tubing.
OPTIONAL
Side : Aluminum Channel shape section 75x35x3.5mm
Step : Aluminum 26mm square corrugated.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
| Closed Height FT. (Mtrs.) | Extended Height FT. (Mtrs.) | Closed Height FT. (Mtrs.) | Extended Height FT. (Mtrs.) |
| 10’(3.04) | 17’(5.18) | 18’(5.49) | 32’(9.76) |
| 12′(3.66) | 20’(6.09) | 20’(6.09) | 36’(10.98) |
| 14′(4.27) | 24’(7.32) | 24’(7.32) | 40’(12.19) |
| 16’(4.88) | 28’(8.54) | 20’(6.09) In Three Fold | 50’(15.24) |
Design No.AL-444/8810

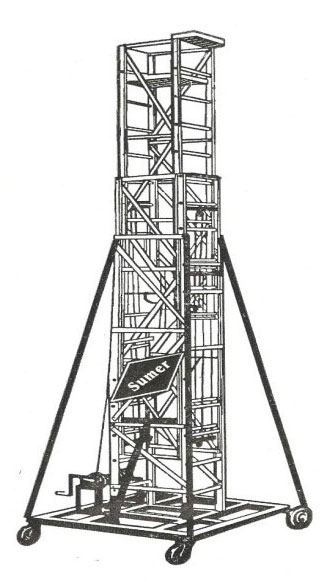

ALUMINIUM TOWER LADDER
Description : Aluminium tower ladder made out of high tensile aluminium Alloy with AL. Platform tool tray on the top fitted with wire rope, winch machine mounted on heavy duty M.S. Trolley with two fix and two revolving wheels pushing handle.
Side : Aluminum ‘C’ shape section 66.6×31.7x3mm
Step : Aluminum 25mm dia corrugated tubing.
OPTIONAL
Side : Aluminum ‘C’ shape section 66.6×31.7x4mm
Step : Aluminum 26mm square corrugated tubing.
OPTIONAL
Side : Aluminum Channel shape section 75x35x3.5mm
Step : Aluminum 26mm square corrugated.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
| Closed Height FT. (Mtrs.) | Extended Height FT. (Mtrs.) | Closed Height FT. (Mtrs.) | Extended Height FT. (Mtrs.) |
| 10’(3.04) | 17’(5.18) | 18’(5.49) | 32’(9.76) |
| 12′(3.66) | 20’(6.09) | 20’(6.09) | 36’(10.98) |
| 14′(4.27) | 24’(7.32) | 24’(7.32) | 40’(12.19) |
| 16’(4.88) | 28’(8.54) | 20’(6.09) In Three Fold | 50’(15.24) |
Design No.AL-111/8806

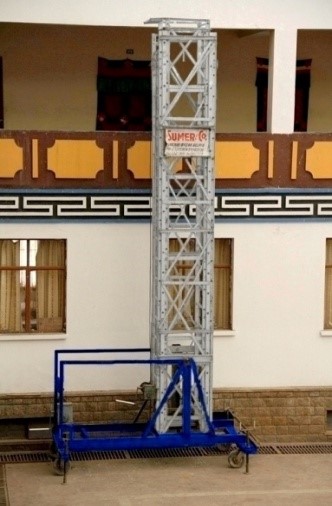

ALUMINIUM TILTABLE TOWER LADDER
Description : Aluminium Tiltable tower ladder made out of high tensile aluminium Alloy with chequered platform, tool tray on the top fitted with wire rope and heavy duty winch machine and mounted on M.S. Trolley with two fix and two revolving wheels.
Side : Aluminum ‘C’ shape section 66.6×31.7x3mm
Step : Aluminum 25mm dia corrugated tubing.
OPTIONAL
Side : Aluminum ‘C’ shape section 66.6×31.7x4mm
Step : Aluminum 26mm square corrugated tubing.
OPTIONAL
Side : Aluminum Channel shape section 75x35x3.5mm
Step : Aluminum 26mm square corrugated.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
HEIGHT AVAILABLE:
| Closed Height FT. (Mtrs.) |
Extended Height FT. (Mtrs.) |
Closed Height FT. (Mtrs.) |
Extended Height FT. (Mtrs.) |
| 10’(3.04) | 17’(5.18) | 18’(5.49) | 32’(9.76) |
| 12′(3.66) | 20’(6.09) | 20’(6.09) | 36’(10.98) |
| 14′(4.27) | 24’(7.32) | 24’(7.32) | 40’(12.19) |
| 16’(4.88) | 28’(8.54) | 20’(6.09) In Three Fold |
50’(15.24) |
| 18’(5.49) | 32’(9.76) | 24’(7.32) In Three Fold |
65’(19.81) |
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No.AL-851

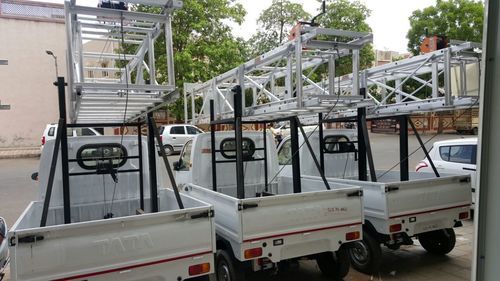

LADDER ON VEHICLE
Description :Aluminium Tiltable tower ladder made out of high tensile aluminium Alloy with chequered platform, tool tray on the top fitted with wire rope and heavy duty winch machine and mounted on M.S. Trolley with two fix and two revolving wheels.
Side : Aluminum ‘C’ shape section 66.6×31.7x3mm
Step : Aluminum 25mm dia corrugated tubing.
OPTIONAL
Side : Aluminum ‘C’ shape section 66.6×31.7x4mm
Step : Aluminum 26mm square corrugated tubing.
OPTIONAL
Side : Aluminum Channel shape section 75x35x3.5mm
Step : Aluminum 26mm square corrugated.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
HEIGHT AVAILABLE:
| Closed Height FT. (Mtrs.) |
Extended Height FT. (Mtrs.) |
Closed Height FT. (Mtrs.) |
Extended Height FT. (Mtrs.) |
| 10’(3.04) | 17’(5.18) | 18’(5.49) | 32’(9.76) |
| 12′(3.66) | 20’(6.09) | 20’(6.09) | 36’(10.98) |
| 14′(4.27) | 24’(7.32) | 24’(7.32) | 40’(12.19) |
| 16’(4.88) | 28’(8.54) | 20’(6.09) In Three Fold | 50’(15.24) |
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No.AL–8817

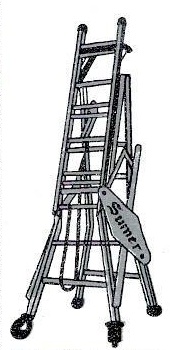

Aluminum Telescopic Tower Ladder
Side : Aluminum ‘C’ shaped section of size 66.6×31.7mm.
Step : Aluminum 25mm round corrugated tubing.
All raw materials used as per IS: 733-1983.
Top Platform & 2Nos Wheel will be provided.
